Home Automation Products

Our master unit can be placed on the wall. It connects to your Wi-Fi Network and interacts with our Cubical Mobile App.

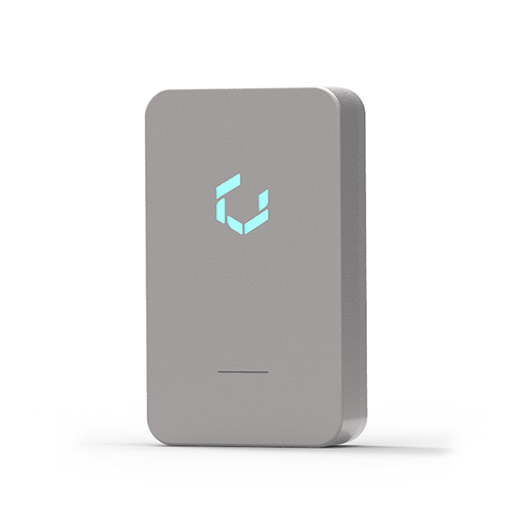

The Cubical Master is a 4 inch box that runs all the complex algorithms for the commands that the user gives while operating on the smartphone application. Exquisitely designed, it is very easy to install. It acts like a central hub for all our home automation products and interacts with all other switches to control the devices. With the informative display indicator, you can easily determine the status of the Cubical Master.

Technical Specifications

• The Central Hub & Processing Unit
• Supports IP Cameras, AURA, Hex, Tri & Mono switch modules
• Works on 2.4 GHz Cube-R Protocol
• 16 GB internal memory expandable up to 32 GB
• 1.2 GHz Broadcom 64-bit Quad Core Processor
• In-built Bluetooth Low Energy ( BLE )
• In-built Wi-Fi supports IEEE 802.11b/g/n Standard
• Latency of 200 milliseconds for up to 25 switch modules
• LED Indicator for quick status & notification
• Security : WPA, WPA2 (Wi-Fi) , RSA 256-bit & AES 128-bit Encryption
• Power Rating : 5 V, 2.4 Amps

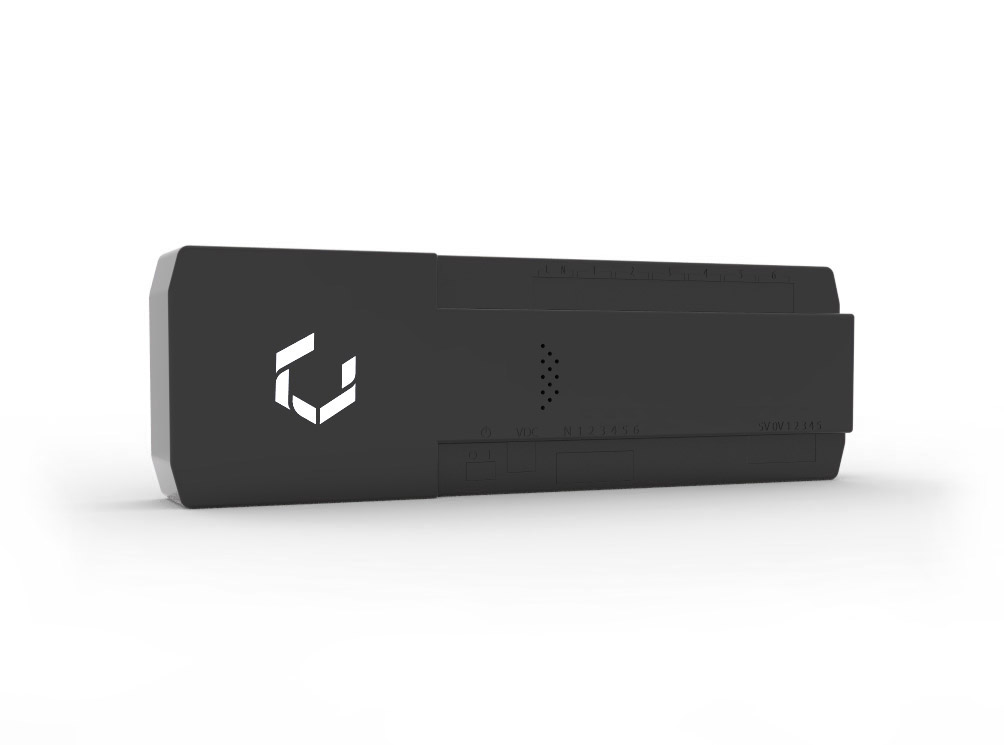

Hex Switch Module

This switch can control and regulate upto six electrical devices, each upto a rating of 650 W. The Cubical Hex switch enables the user to control, dim, schedule and monitor the energy consumption of the electrical appliances that are automated.

• Built-in 2.4GHz ISM band Radio
• ECC-256 and AES-128 Encryption
• Max. Power Rating (per channel) : 650 W
• Max. Power Rating (device) : 1800 W

Tri Switch Module

This switch can control and regulate upto three electrical devices, each upto a rating of 650 W. The Cubical Tri switch enables the user to control, schedule and monitor the energy consumption of the electrical appliances that are automated.

• Built-in 2.4GHz ISM band Radio
• ECC-256 and AES-128 Encryption
• Max. Power Rating (per channel) : 650 W
• Max. Power Rating (device) : 1500 W

Hex Switch Module

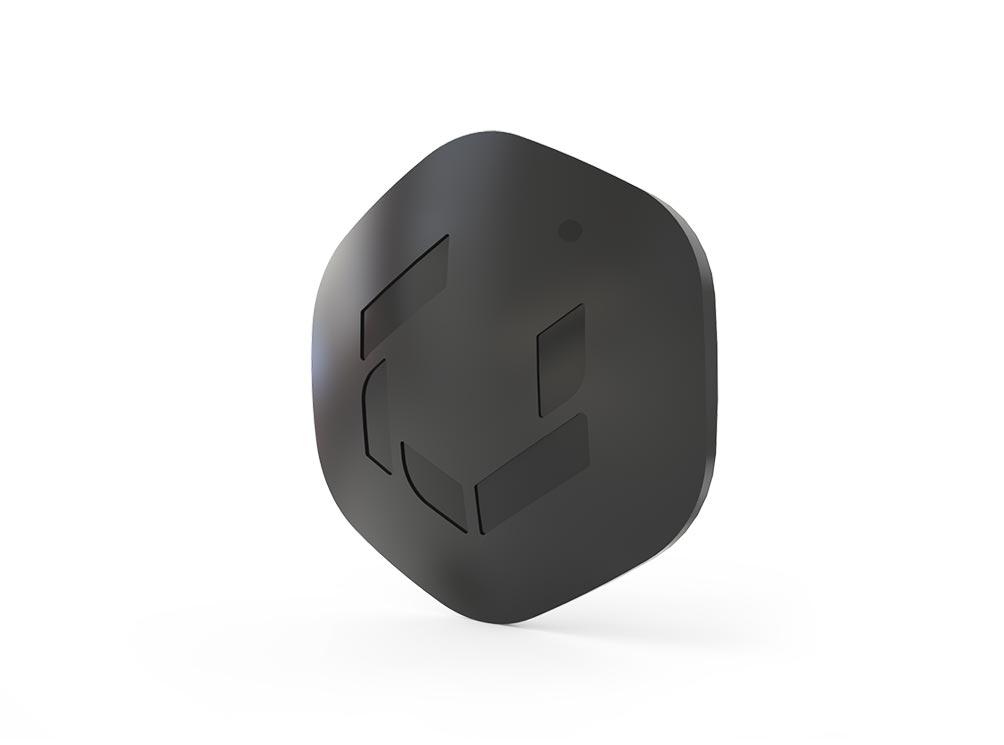

Aura can be easily fixed on the wall , and has following sensors-
IR (Infrared ) blasters
The system allow you to control all IR devices from our app, even if the switch boards aren’t fitted with any of our switches . 100 remote key actions can be trained per Aura and this feature is available even for phones which don’t have IR .
Temperature and Humidity sensors
Aura comes with an intelligence system which learns about your daily usage patterns (of ACs and fans) through real time data, senses the outside temperature and accordingly provide suggestions and/or controls the climate in a room.
LDR (light) sensor
Aura can sense the intensity of light and an intelligent system that learns your patterns and helps maintain ambient lighting in a room.
Proximity sensor (Gesture)
Just a simple swipe of hand towards right in front of Aura, switches off all the non-essential devices and that towards left would enable pre-set mood settings.

Technical Specifications

• The Powerful Sensor-packed device
• Supports all IR devices ( ACs, TV, Music Systems )
• Works on 2.4 GHz Cube-R Protocol
• Temperature Sensor Range : -55 to +55 C
• Humidity Sensor Range : 0 to 100% RH
• LED Indicator for quick status & notification
• Security : WPA, WPA2 (Wi-Fi) , RSA-256 & AES-128 Encryption
• Power Rating : 5 V, 1.5 Amps

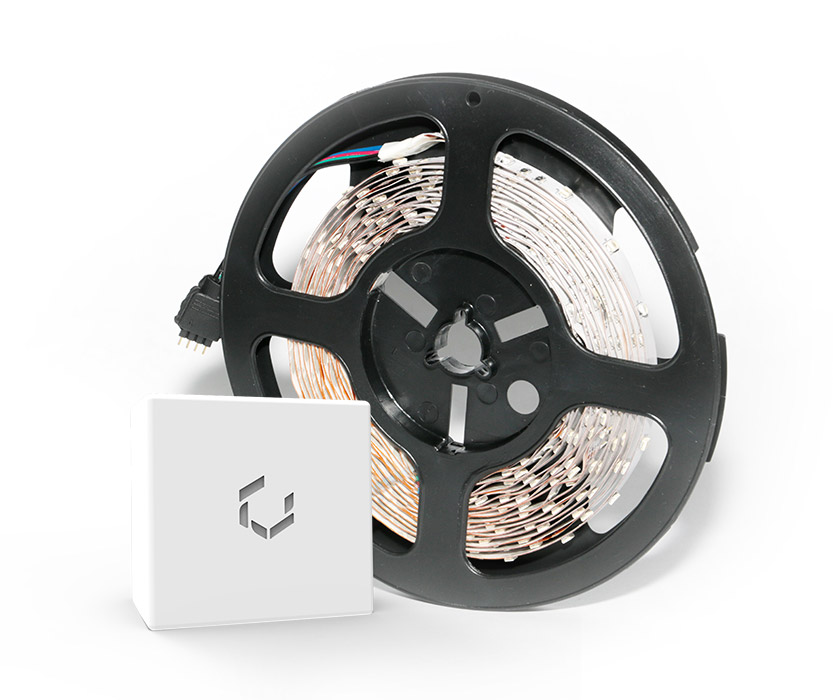

Cubical Colors

A fully customizable LED strip which allows you to control the brightness and choose from among 32 million colors, fully controlled by mobile app. It can convert your home into a romantic palace , a crazy party house , a calm reading nook or whatever you wish it to be.

Cubical colors has our own RGB controllers , with the LED made in collaboration with Jainsons.
